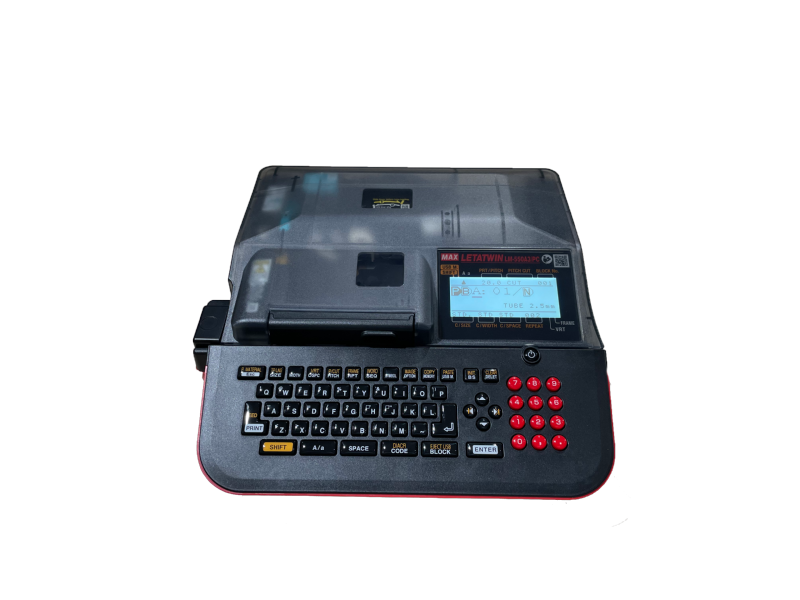

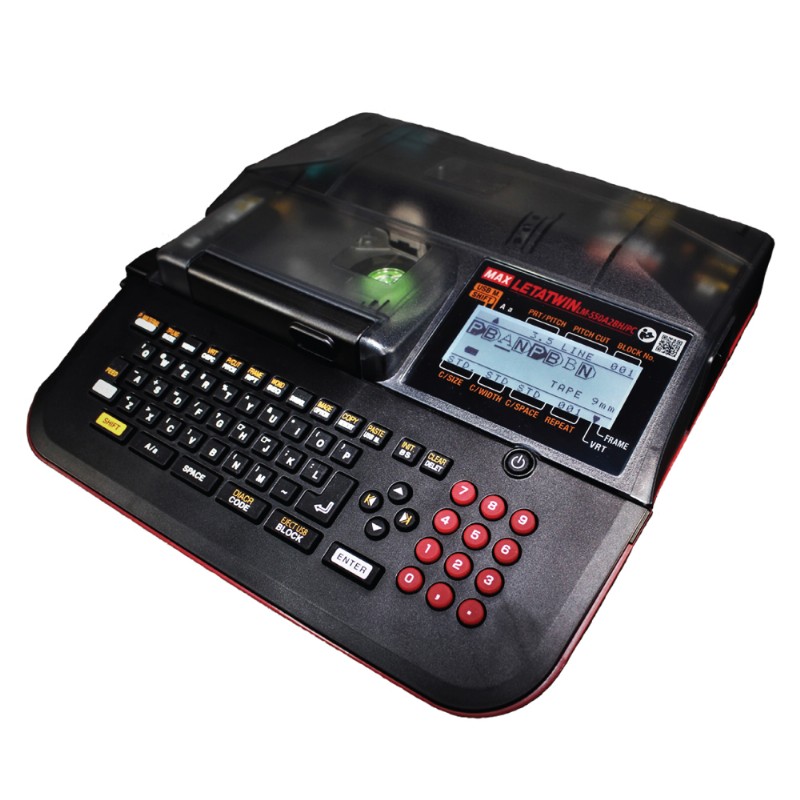

LM-550A3BH

Electronic Lettering Machine

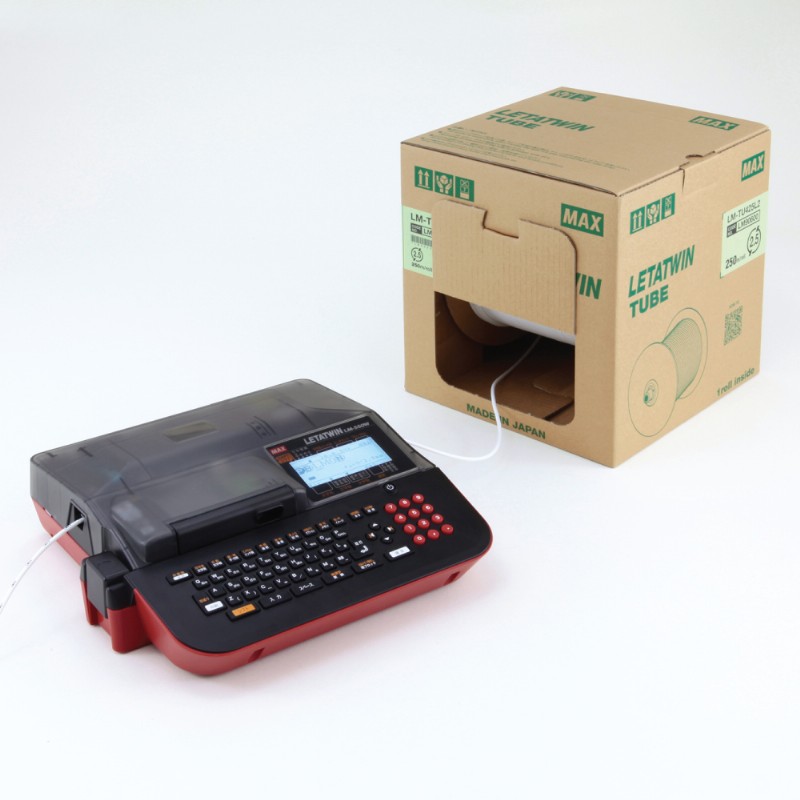

MAX LETATWIN LM-550A3BH is a portable, high-speed thermal transfer printer for control panel marking, wire numbering, and device labeling. Using thermal transfer technology, it is ideal for printing directly onto heat-shrink and PVC tubing and for printing on MAX polyester tapes for marker strip labeling. Unique features include the ability to make half-cut or full cut parts, a warming element and optional battery power capability. Connect to a computer and print directly to the machine, or save marker data to the machine's large internal memory and take it with you on-site. Engineered for high-productivity and robust environments, including a shock-resistant rubber keyboard, you will use your LETATWIN trouble-free for many years to come.

Applications

  • Control Panels
  • Switch Boards
  • Patch Panels

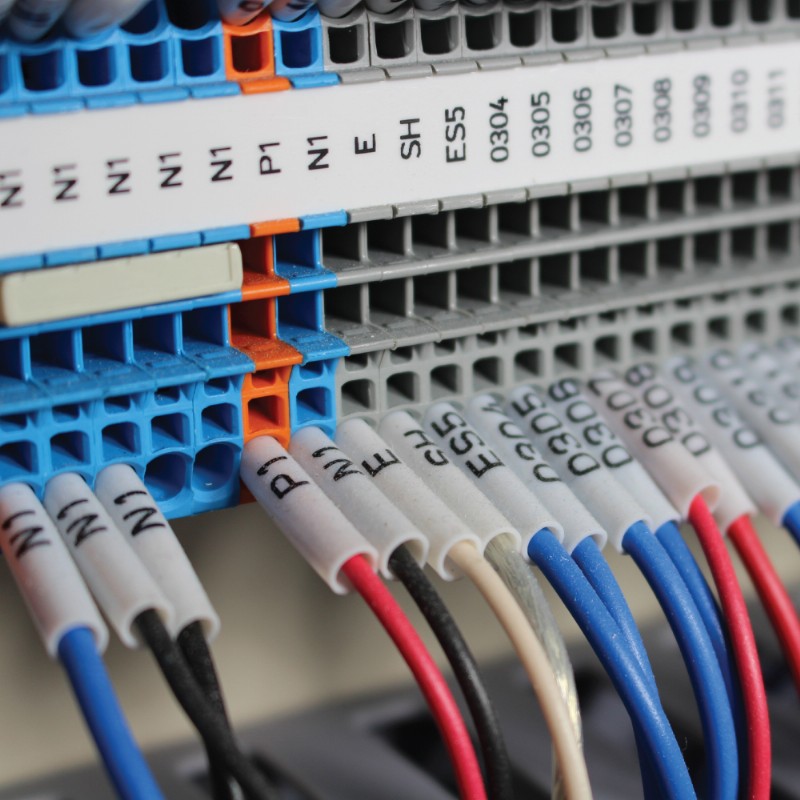

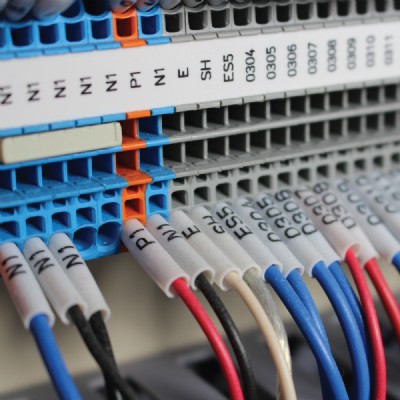

  • Terminal Blocks
  • Power Distribution
  • Automation
  • Wire Harnesses
Buy Now
FeaturesSpecificationsManuals/VideosDownloadsBuy Now

Features

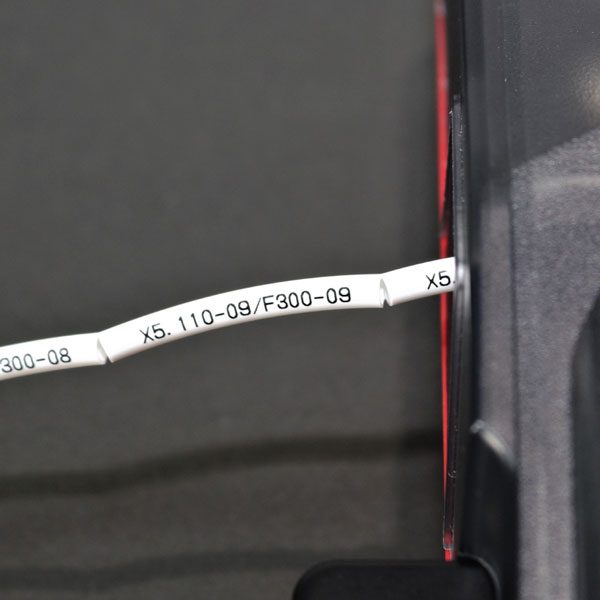

  • HALF CUT FUNCTION Keeps your markers in the order they were printed. Take them to the installation area, and just pull them apart when ready for use.
  • VERSATILE PRINT MEDIA Prints on PVC Tube (ferrule), Heat Shrink Tube, Marking Tape, ID Plates and Markable Slide Plates. LM-550A series supports a wide range of diameters.

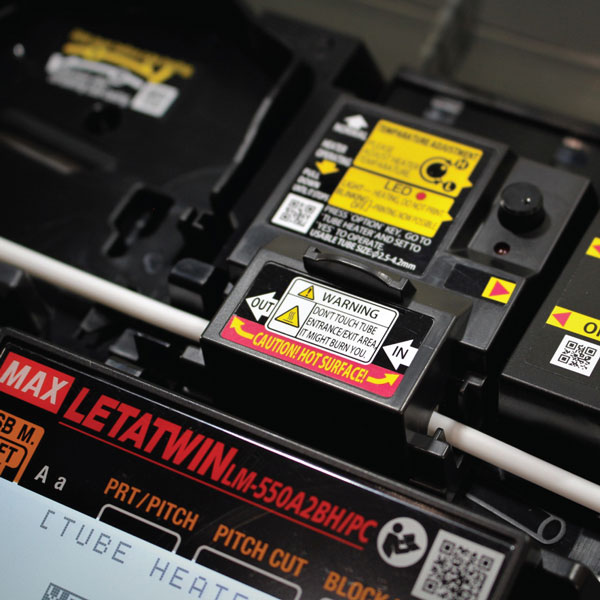

  • TUBE HEATER BUILT IN When your workplace is a cold environment, this function can help tubing stay soft by heating it. You can maintain high printing quality on tubing.
  • INTEGRATED RECHARGEABLE BATTERY When plug-in power is not available, this upgrade enables the user to continue wire numbering and device labeling on site by loading 4 AA-size batteries.

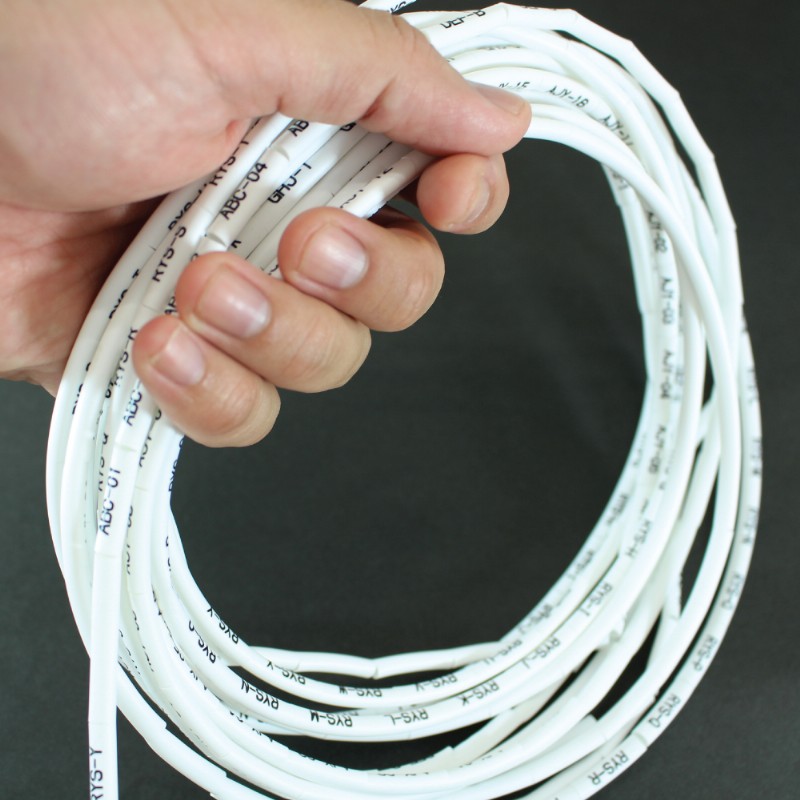

  • HIGH-SPEED PRINTING The LM-550A makes wire markers at a top speed of 40mm/sec. The unique half cut technology makes it easier to take the markers with you.
  • PC CONNECTIVITY Connect to PC with USB, and save time on data entry. Export your CAD file as a CSV filetype, then copy and paste from Excel to LETATWIN PC EDITOR.
  • STORE JOB FILES Maximum 250,000 characters built-in large memory storage.
  • DECREASE TIME RE-LOADING CONSUMABLES Long consumable roll length, 110 meters for ink ribbon, 16 meters for tape.
  • COMPACT AND HANDY Plastic carrying case included.

Specifications

DIMENSIONS 3.7"(H) x 11.61"(W) x 11.54"(L)
WEIGHT 5.3 lbs
PRINTING METHOD Thermal Transfer Method (300dpi)
DISPLAY LCD dot matrix: 64 x 160 Pixel (Backlit)
PRINTING SPEED 40mm/s (Standard) 20mm/s (Low Temperature Mode)
MAXIMUM PRINTING LENGTH Tube : 100m, Tape : 5m
By multiple copy printing, maximum 30 copies, up to Tube : 100m, Tape : 7m
MAXIMUM NUMBER OF CHARACTERS TO INPUT 5,000 characters per file
CHARACTER SIZE 1.3, 2, 3, 4, 6mm height
USABLE TUBE φ1.5mm - 8.0mm (PVC Tube)
φ2.0mm - 6.5mm (Heat Shrink Tube)
(For Grip Tube φ1.5 - 2.0mm tubes, the dedicated attachment is required.)
USABLE TAPE Width 5, 9, 12mm (MAX genuine tape)
TUBE CUTTING METHOD Auto half cut, manual full cut
INTERNAL MEMORY 250,000 characters (Maximum 50 files)
EXTERNAL MEMORY USB memory
INTERFACE USB 2.0 full speed
POWER SUPPLY DC12V, 4.2A Use only specified AC Adapter (100V - 240V) / 4 AA batteries
POWER CONSUMPTION MAX 40W
OPERATING ENVIRONMENT 10℃ to 35℃

Manuals & Videos

Downloads

Buy Now:

LM-550A3BH Electronic Lettering Machine
Price: $1,425/each

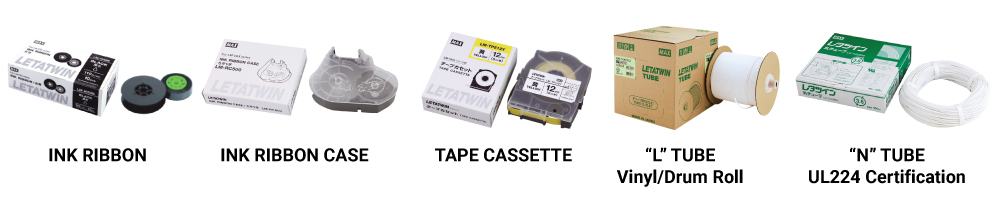

Consumables:

Product Description Size Package Price Quantity Add to:
Ink Ribbon for Vinyl PVC Tube LM-IR50B Black Ribbon 110m/roll 10 rolls/box $216.00
Ink Ribbon for Heat Shrink Tube LM-IR50BP Black Ribbon 110m/roll 10 rolls/box $248.50
Ink Ribbon for Black Heat Shrink Tube LM-IR50W White Ribbon 70m/roll 10 rolls/box $194.40
Ink Ribbon Case LM-RC500 Ribbon Case 1/box $24.20
Grip Tube (Vinyl PVC/Drum Roll) LM-TU29G White Tube 1.9MM to 2.1MM, 100m/roll 1 roll/carton $82.50
Grip Tube (Vinyl PVC/Drum Roll) LM-TU37G White Tube 2.5MM to 2.7MM, 100m/roll 1 roll/carton $82.50
"L" Tube (Vinyl PVC/Drum Roll) LM-TU425L2 White Tube 2.5mm dia. x 250m/roll 1 roll/carton $74.25
"L" Tube (Vinyl PVC/Drum Roll) LM-TU427L2 White Tube 2.7mm dia. x 250m/roll 1 roll/carton $74.25
"L" Tube (Vinyl PVC/Drum Roll) LM-TU432L2 White Tube 3.2mm dia. x 250m/roll 1 roll/carton $74.25
"L" Tube (Vinyl PVC/Drum Roll) LM-TU434L2 White Tube 3.4mm dia. x 250m/roll 1 roll/carton $74.25
"L" Tube (Vinyl PVC/Drum Roll) LM-TU436L2 White Tube 3.6mm dia. x 250m/roll 1 roll/carton $74.25
"L" Tube (Vinyl PVC/Drum Roll) LM-TU442L White Tube 4.2mm dia. x 200m/roll 1 roll/carton $66.00
"L" Tube (Vinyl PVC/Drum Roll) LM-TU452L White Tube 5.2mm dia. x 135m/roll 1 roll/carton $66.00
"L" Tube (Vinyl PVC/Drum Roll) LM-TU464L White Tube 6.4mm dia. x 100m/roll 1 roll/carton $68.20
"L" Tube (Vinyl PVC/Drum Roll) LM-TU480L White Tube 8.0mm dia. x 70m/roll 1 roll/carton $70.40
"N" Tube (UL224 Certification) LM-TU332N2 White Tube 3.2mm dia. x 100m/roll 1 roll/box $47.30
"N" Tube (UL224 Certification) LM-TU336N2 White Tube 3.6mm dia. x 100m/roll 1 roll/box $48.40
"N" Tube (UL224 Certification) LM-TU342N2 White Tube 4.2mm dia. x 80m/roll 1 roll/box $49.50
"N" Tube (UL224 Certification) LM-TU352N2 White Tube 5.2mm dia. x 80m/roll 1 roll/box $50.60
Label Tape Cassette LM-TP505W (White) 5mm(W) x 16m(L)/pc. 10 pcs/box $215.90
Label Tape Cassette LM-TP505Y (Yellow) 5mm(W) x 8m(L)/pc. 10 pcs/box $140.30
Label Tape Cassette LM-TP505T (Transparent) 5mm(W) x 8m(L)/pc. 10 pcs/box $169.00
Label Tape Cassette LM-TP509W (White) 9mm(W) x 16m(L)/pc. 10 pcs/box $215.90
Label Tape Cassette LM-TP509Y (Yellow) 9mm(W) x 8m(L)/pc. 10 pcs/box $151.10
Label Tape Cassette LM-TP509T (Transparent) 9mm(W) x 8m(L)/pc. 10 pcs/box $172.70
Label Tape Cassette LM-TP512W (White) 12mm(W) x 16m(L)/pc. 10 pcs/box $215.90
Label Tape Cassette LM-TP512Y (Yellow) 12mm(W) x 8m(L)/pc. 10 pcs/box $169.00
Markable Slide Plate LM-KM4107 w10.7mm x t0.5mm x 25m/roll 1 roll/box $38.50
Half Cutter Unit LM-HC340 2 pcs/box $19.80
