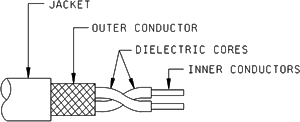

M17/45-RG108 | Flexible Twinaxial Cable, 78 Ohms
Characteristics:
- 2 tinned copper conductors
- Polyethylene (PE) insulation, 0.079"
- 36 AWG tinned copper braid shield
- Polyvinylchloride (PVC) jacket
- Temperature range: -40°C to +85°C
Applications:
- General purpose medium-low temperature in balanced cable applications
Comments:
- Balanced line—use up to 10 MHz max
Conductor Stranding: 7/0.0126
Nom. Dia. of Conductor (in): 0.0378
Nom. O.D. (in): 0.235
Weight (lb/ft): 0.029
Nom. Imp. ohms Vp (%): 78
Nom. Cap. pF/ft: 19.6
Max Volts vrms: 1000
